Industrial-Grade Skid Steer Mulcher Attachments from Denis Cimaf

Denis Cimaf specializes in high-efficiency forestry mulcher attachments for skid steer loaders and excavators. These industrial-grade mulching tools feature premium components, with an unmatched attention-to-detail backed up by full service and parts support from the manufacturer. Recognized the world over for high quality, high productivity, and high efficiency, Denis Cimaf boasts one of the most trusted names in the business. The team at Skid Steer Solutions is proud to announce the launch of Denis Cimaf into our Forestry Mulcher Attachment category, providing a high-end attachment option to machine operators who demand the best is forestry mulching capabilities.

We currently offer three Denis Cimaf Skid Steer Mulcher Attachment models: the DAF-150D, DAF-180D and DAF 180-E. This selection will offer forestry mulching professionals a diverse selection of attachments that will suit most modern skid steer and compact track loaders. Denis Cimaf Forestry Muclher excel at all manner of vegetation management, brush cutting, and land clearing. They have also been utilized for forest-fire back-cutting and prevention, road development and maintenance, pipeline development, and commercial and residential construction. Read on for a comprehensive overview of these strong and reliable attachments, including attachment detail images and video, as well as in-depth explanations of key mulcher components and parts.

.

.

Buy Denis Cimaf Skid Steer Mulchers Online: Table of Contents

• Skid Steer Mulcher: Model DAF-150D
• Skid Steer Mulcher: Model DAF-180D
• Skid Steer Mulcher: Model DAF-180E
• Denis Cimaf Parts and Support
• Mulcher Attachment Feature: Rotor
• Mulcher Attachment Feature: Knives
• Mulcher Attachment Feature: Engine and Belt
• Mulcher Attachment Feature: Wear Liner and Skid-Plates
• Hydraulic Push-Bar Option for Mulcher Model DAF-180E
• Optional Forestry Door Upgrade
• Denis Cimaf Excavator Mulcher Overview
• Buy Denis Cimaf Skid Steer Mulchers Online or by Phone

Click here to Shop Denis Cimaf Skid Steer Forestry Mulcher Attachments

Skid Steer Mulcher: Model DAF-150D

The Denis Cimaf model DAF-150D is the smallest of their front-mounted Skid Steer models. With a cutting width of 59", the 150D requires a minimum hydraulic flow of of 23 GPM and 75 horsepower. The 150D excels at mulching material at its optimal target diameter of 6" and less. Check out the video below to see the DAF-150D mounted on a Bobcat T650.

.

.

DAF-150D Key Specifications

• Approximate Minimum Loader Power: 75 HP
• Minimum Required Continuous Flow: 23 GPM
• Cutting Width: 59"
• Number of Blades on Rotor: 21
• Optimal Taget Material Diameter: 6"
• Rotor Diameter: 18"
• Approximate Typical Weight: 2300 Pounds
• Motor Size: 85 cc
• Rotating Speed: 2500 RPM

.

.

Skid Steer Mulcher: Model DAF-180D

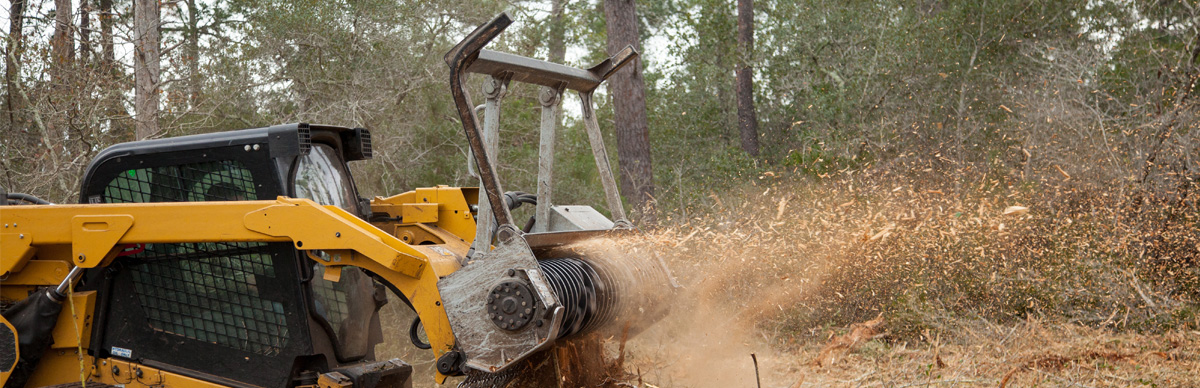

The DAF-180D is by far the most popular and best-selling of Denis Cimaf's front-mounted Forestry Mulchers. The 180D features a larger cutting width when compared to the 150D at 74". Machine power of 85 HP and minimum hydraulic flow of 30 GPM are required to operate the DAF-180D to full capabilities. The optimal target material diameter for the 180D is 8". The video below showcases this wide-ranging model mounted on a Caterpillar 299D2 XHP, clearing trees, vegetation and all other manner of material in service of residential land and lot clearing.

.

.

DAF-180D Key Specifications

• Approximate Minimum Loader Power: 85HP
• Minimum Required Continuous Flow: 30 GPM
• Cutting Width: 74"
• Number of Blades on Rotor: 27
• Optimal Taget Material Diameter: 8"
• Rotor Diameter: 18"
• Approximate Typical Weight: 3200 Pounds
• Motor Size: 115 cc
• Rotating Speed: 2500 RPM

.

.

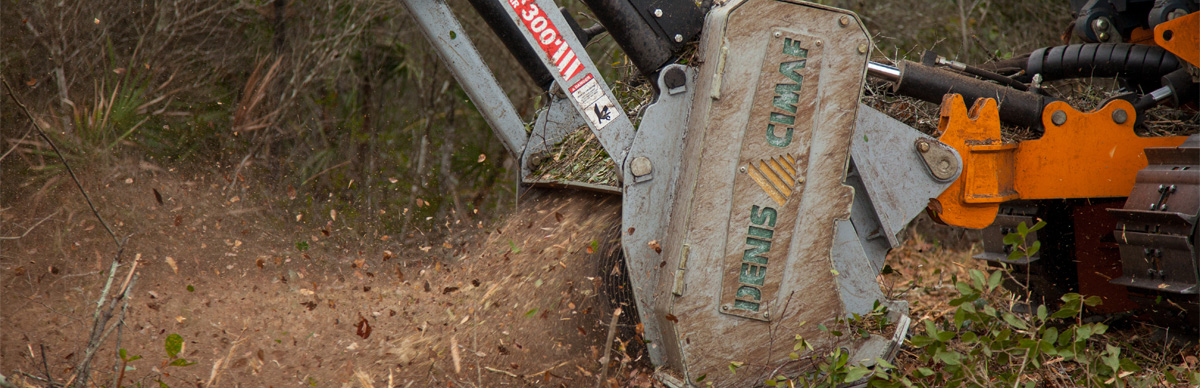

Skid Steer Mulcher: Model DAF-180E

The DAF-180E is the largest of the Denis Cimaf models that can be front-mounted on some of the largest skid steer and compact track loaders. Very similar to the 180D in many respects, the 180E stands out due to its larger rotor diameter, capable of an optimal target material of 10", the largest mulching capability of any model available at Skid Steer Solutions. In order to operate this large Mulcher Attachment, operators will need 125 horsepower and 45 GPM of hydraulic flow. See the DAF-180E in action in the video below, this time mounted on a Lamtrac 6125, a unique and powerful tracked mulching and vegetation management machine.

.

.

DAF-180E Key Specifications

• Approximate Minimum Loader Power: 125 HP
• Minimum Required Continuous Flow: 45 GPM
• Cutting Width: 74"
• Number of Blades on Rotor: 27
• Optimal Taget Material Diameter: 10"
• Rotor Diameter: 20"
• Approximate Typical Weight: 3300 Pounds
• Motor Size: 115 cc
• Rotating Speed: 2500 RPM

.

.

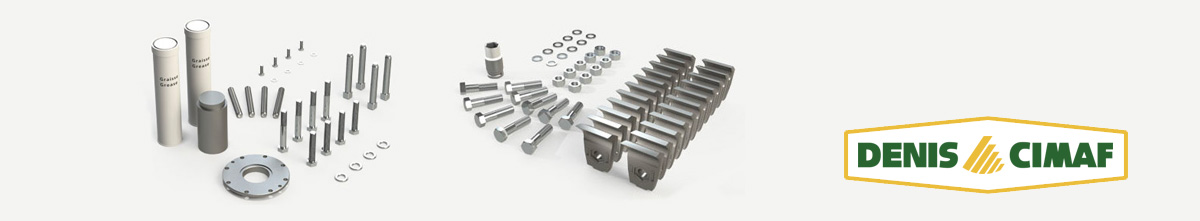

Denis Cimaf Parts and Support

An investment in a Denis Cimaf Skid Steer Forestry Mulcher is an investment in quality and dependability. To back this up, Denis Cimaf offers top-of-the-line after-sales parts and support. Your forestry mulcher is a strong and sophisticated machine with many parts, and it's imperative that your manufacturer support these parts should they need to be replaced. Keeping you up and running and in business is top priority for Skid Steer Solutions, and so we're particularly heartened by Denis Cimaf's commitment to this aspect of the attachment business.

.

.

Right from the jump, each Denis Cimaf Skid Steer Mulcher ships standard with a spare set of blades, a set of maintenance tools and accessories, and a motorized blade sharpener. Specialized Denis Cimaf Technicians are also available to customers, upon request, to supervise attachment installation and to make any necessary technical adjustments to ensure optimal operation.

.

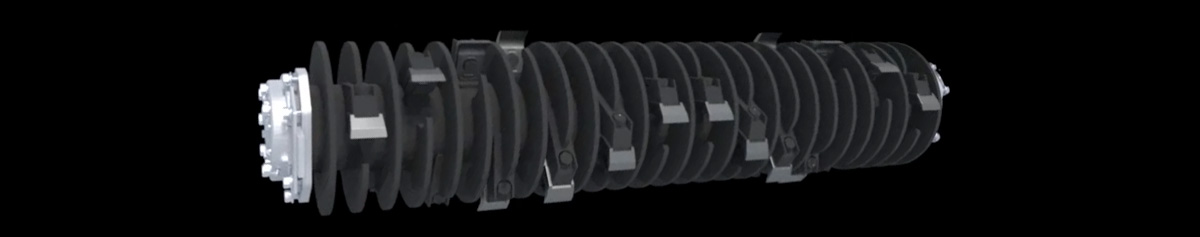

Mulcher Attachment Feature: Rotor

Each Denis Cimaf Skid Steer Mulcher is loaded with an industrial quality rotor, the most important component of the entire attachment. The Denis Cimaf rotor design results in a lighter part than found on comparable attachments. This lightweight allows the Denis Cimaf rotor to increase and improve mulching speed and rotation, leading a faster, more effective mulching tool that doesn't compromise on quality.

.

.

The Mulcher Rotor is essential to mulching operations, as it controls the speed of the knives, as well as the depth and aggression of the mulcher bite. A properly configured rotor will clear material effectively, as well as direct the material flow efficiently to maximize the energy transfer from machine to attachment. This Mulcher Attachment rotor is an excellent example of the advantage gained from premium Denis Cimaf components.

.

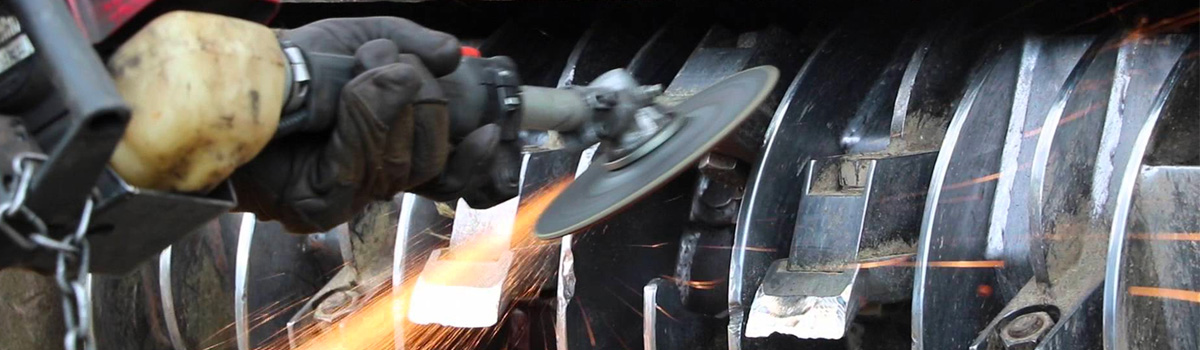

Mulcher Attachment Feature: Knives

The steel knives that come standard with Denis Cimaf Muclhers are extremely strong and also easy to replace. The cutting heads are attached to the knife holder with a single nut and bolt, making knife replacement very quick and easy. Denis Cimaf Mulching Knives feature a tenon-in-mortise design that reduces the stress applied to the bolt, which increases the life of the whole system.

Denis Cimaf knife blades are manufactured impact resistant, abrasion resistant, and cold resistant, meaning they are designed to perform in all conditions. Made of forged, hardened steel, these knives are heat-treated several times throughout the manufacturing process, resulting in a strong and reliable tool that provides incredible mulching power.

.

.

All Denis Cimaf Knives undergo rigorous Impact Pendulum Testing to ensure maximum steel integrity and strength. Designed to perform with an optimal cutting angle, each Denis Cimaf Mulcher comes standard with a spare set of blades, a knife angle gauge, as well as a motorized blade sharpener that will keep your knives sharp and effective day-in and day-out. Check out the video below for a full overview of what these Knives have to offer.

.

.

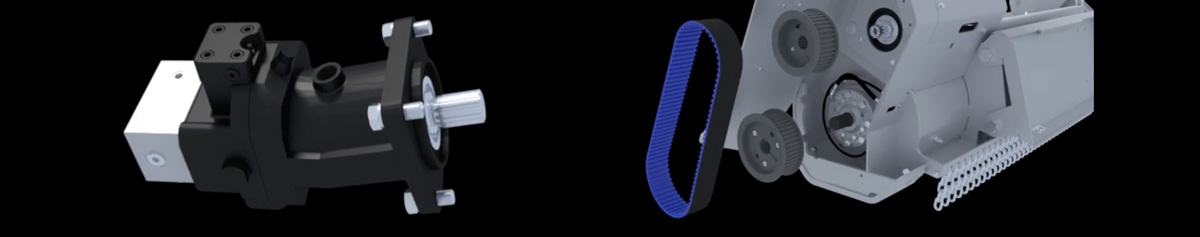

Mulcher Attachment Feature: Engine and Belt

The Denis Cimaf mulcher engine in all front-mounted skid steer DAF models consists of a powerful and reliable hydraulic axial piston and variable cylinder motor. This sophisticated design limits overheating, which prevents damage and operational issues under heavy application. This set-up also allows for rapid re-acceleration of the mulcher head after pausing operation or transporting to a new work area.

.

.

The robust transmission belt of the mulcher attachment is notched, and transmits all the engine power to the rotor without the risk of skidding or slippage. These two key components combine to give machine operators consistent, reliable mulching power than can be relied upon.

.

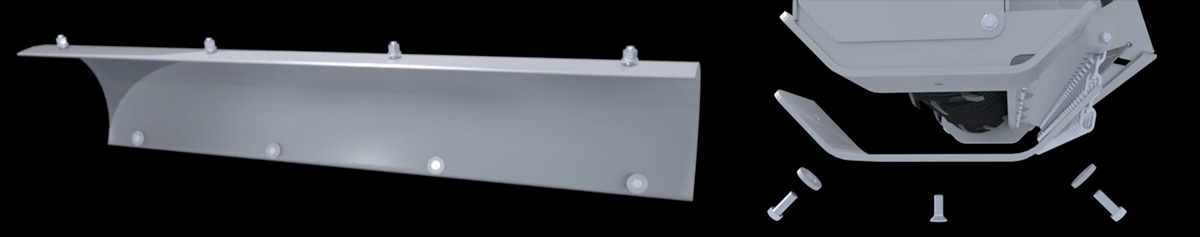

Mulcher Attachment Feature: Wear Liner and Skid-Plates

You're going to put your Skid Steer Mulcher to the test, and Denis Cimaf knows this. Designed for heavy application and heavy speeds, it's no surprise that the attachment has wear parts that need to be paid attention to. Denis Cimaf has considered this, and includes a replaceable wear liner and skid-plates with every unit. The replaceable wear liner limits the wear of the casing of the attachment, especially in the inner part of the mulcher where the rotor is housed. It is easily removed and replaced with a simple set of bolts and you can find this part from either Denis Cimaf or Skid Steer Solutions.

.

.

The same goes for the skid-plates of the mulcher. These plates come in contact with the ground during heavy mulching and protect the case of the machine and limit serious damage. Only three bolts are required to secure the skid-plates, making them very fast and simple to replace once the have completed their protection of the greater attachment whole.

.

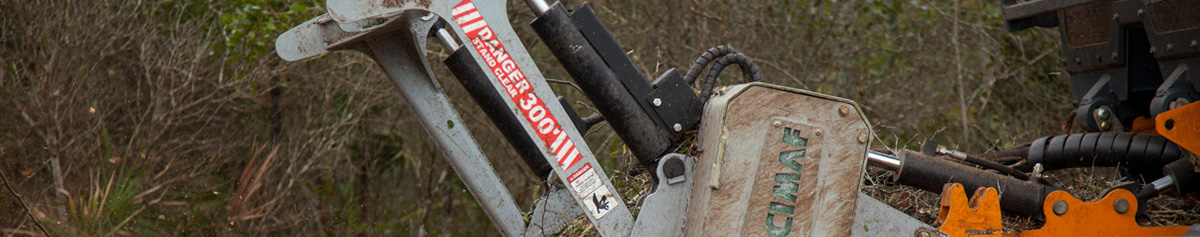

Hydraulic Push-bar Option for Mulcher Model DAF-180E

For the larger skid steer model, the DAF-180E, Denis Cimaf offers an hydraulic push-bar option. Utilizing the hydraulics of your machine, this push-bar allows for strategic application of force to falling trees, without tearing up or impacting the ground below your machine. This option can be added to the order of a DAF-180E, please give us a call at 1-866-966-2538 to discuss pricing and attachment electrical control details.

.

.

When clearing larger or older vegetation areas, it's common for operators to encounter larger trees that need to be removed. The safest and most time-tested method involves grinding and mulching down about half of the base of the tree's stump, then pushing the with the attachment and the machine until the full tree breaks and falls. With this hydraulic push-bar, you'll be able to more precisely control the fall of the tree, and also increase the space between your machine and the falling tree. From there, utilize your powerful mulcher attachment to take care of the remaining stump and now land-based tree.

.

Optional Forestry Door Upgrade

For industrial-grade forestry clearing with Denis Cimaf Mulching Attachments, the Skid Steer Solutions team always recommends ensuring safe operation with a durable polycarbonate forestry door on the cab of your skid steer or compact track loader. We've partnered with forestry door experts to offer a wide range of options for our customers of mulching attachments, as well as other skid steer rotary and flail mowers. Made of 1/2" or 3/8" thick polycarbonate, these doors come in models that will fit a wide range of loaders. Select from Bobcat, Caterpillar, John Deere, Kubota or New Holland models. These durable doors resists breaking or cracking and protect the operator from flying debris and material that are common during heavy-duty clearing operations. Clear effectively and safety with the proper door on the cab of your machine!

.

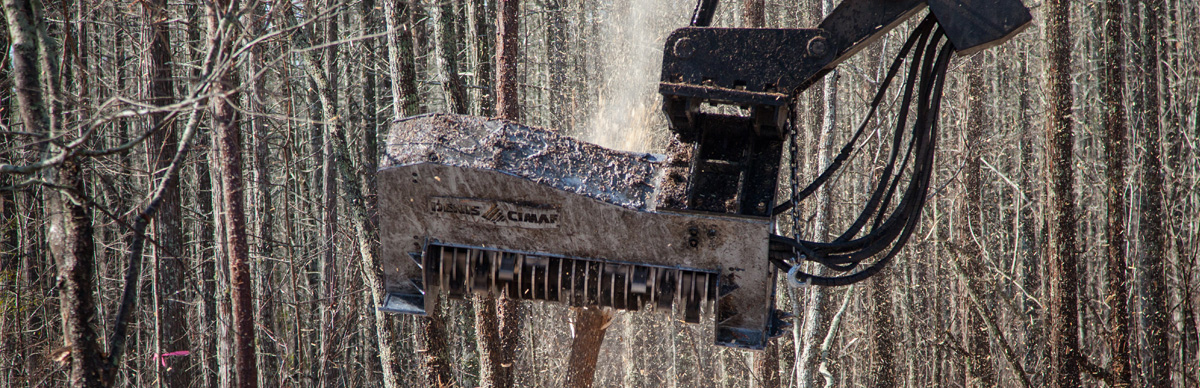

Denis Cimaf Excavator Mulcher Overview

For Excavator operators, there is also an entire host of DAH Boom-Mounted Mulchers for a wide variety of Excavators of all carrier sizes. The DAH line of mulchers are high-power, forestry brush cutters and mulchers. They are part of an industrial-grade mulching system, ready to tackle the toughest jobs and heaviest applications.

.

.

Due to the complicated and sophisticated nature of these excavator mulching attachments, and all of the variables that need to be accounted for during installation (machine size, make, model, hydraulics, mounting, etc), most Denis Cimaf Excavator Mulcher require 30-40 hours of installation labor. As such, we don't offer specific models for sale on Skid Steer Solutions. Should you be interested in a Denis Cimaf Mulcher for your Excavator, please give us a call to discus particulars, and our attachment experts will facilitate discussions between you and Denis Cimaf to get the process fully understood and underway. There are 6 available DAH series Excavator Mulchers, designed for the following Excavator sizes: 5-8 tons, 8-10 tons, 10-15 tons, 12-22 tons, 20-27 tons, and 27-35 tons.

.

.

.

.
