PDX-750 Breaker Style Skid Steer Post Driver Attachment | Eterra

Product Video

Watch More Videos

PDX-750 Breaker Style Skid Steer Post Driver Attachment | Eterra

Free Shipping in the Continental USA
SKU:
ET-PDX-750
Weight:
747.00 LBS
Availability:
In-Stock

Product Options

QTY

Eterra PDX-750 Breaker Style Skid Steer Post Driver Attachment

The newest installment of the industry-leading Eterra Post Driver Attachments, the PDX-750 series delivers fast and effective post driving, with a number of dynamic features that customers have come to expect from Eterra's innovative line of attachments. Put posts in the ground faster and more efficiently with the PDX-750 line of post drivers. Great for farmers, ranchers with livestock and professional fence builders. We hear time and time again how amazed a customer's neighbors are with how fast they put a fence in. Watching your neighbor put 50-80 post per hour with a PDX-750 after you just slowly dug each post hole out and placed them one by one might make you a little upset that you hadn't thought of getting one the first time.

Models and Options: Optimize your set-up by selecting from the many PDX-750 options, including tilt functionality, two different driver heads, and innovative attachment controls. Eterra is proud to design, manufacture and assemble all PDX Post Drivers in the United States of America.

By taking advantage of tried and true, jobsite tested concrete hammering technology, the PDX-750 delivers reliable strength and rugged performance in a variety of post driving conditions. Eterra has constructed a heavy duty housing that contains the driver's powercell, the strength of this housing ensures that the attachment stays strong and stable, and will not come loose or fall apart throughout constant pounding and vibration. The PDX-750 has been designed and engineered with the fence contractor in mind, and is a must-have skid steer attachment for operators looking to get the most out of their machines.

Select Product Options Above

  • Select Model
  • Select Attachment Control Device (for models with tilt functionality)
  • Select Optional Breaker Tool
  • Select Full Driver Head Set Option (Receive Cupped Driver head as well as Flat Driver Head with Post Head Guide System)
  • Select Optional Nitrogen Charge Kit
  • Hoses and Flat-Faced Couplers Included

Tilt Functionality

Allows for 15 degrees of angle side-to-side when working in uneven conditions that require precision and adjustment. The Tilt mechanism on the PDX-750 has been designed to be as compact and as close to the mounting plate as possible. This allows the weight of the machine to most effectively deliver force to the post. This Tilt functionality is designed specifically for use with the PDX-750 and cannot be used as a stand-alone tilt.

Driver Head Options

The PDX-750 features two driver head options for maximum versatility. The Heads are made from 4140 heat treated American Made steel to ensure a durable driver head that won't crack or break. Choose your desired option, or elect to receive both driver heads when purchasing.

Cupped Driver Head: An open cup style with a coned shape driver head (no post guide enclosure). 9" cone diameter allows for up to an 8" post.

Flat Cup and Post Head Guide System: Flat shape driver head includes Post Drive Enclosure and four Eyelet options for a variety of post sizes. Eyelet sizes are: 8.5" (8" post), 6.5" (6" post), 4.5" (4" post), 2.5" (2" post or steel T post).

Modular System

The PDX-750 is a full modular system, making it simple to mount the attachment on a your Skid Steer, and with a simple transfer and a few adjustments, mount the attachment on an Excavator or Backhoe. All you'll need is the proper coupler. We offer a wide range of coupler options, and are able to accommodate most requests. If you're interested in operating the PDX-750 of both a Skid Steer Loader as well as Excavator or other machine, please give us a call.

Features

  • Proudly designed, manufactured and assembled in the USA
  • American Made nitrogen charged powercells for driving power you can rely on
  • Strong and durable housing protection over powercell, does not vibrate loose and fall apart
  • Innovative customization including tilt functionality and two driver head options
  • Compact Tilt function allows for 15 degrees of angle side-to-side
  • Integrated cup design allows for use of both cup options depending on job demands
  • Driver heads made from 4140 heat treated American Made steel
  • Powder coat finish for increased protection against the elements and wear
  • Plumb-chain included for reference when driving on uneven terrain
  • Integrated hose protection
  • Can accommodate optional Concrete Breaker tool with a single pin
  • Remove excess concrete or hammer through rocks below the surface
  • Designed and engineered with high-volume fence contractors in mind
Weight:
850 Pounds
Width:
14.625"
Height:
44.875"
Driver Head Material:
4140 Heat Treated American-Made Steel
Impulse Force:
750 Ft. Lbs. per Stroke
Impact Energy:
450 Ft. Lbs. per Stroke
Driver Head:
Variable Options
Hydraulic Flow Requirement:
13-21 GPM
Minimum Operating Pressure:
1400 PSI
Maximum Operating Pressure:
1700 PSI
Cupped Driver Head Diameter:
9"
Cupped Driver Head Max Post Diamater:
8"
Flat Driver Head Max Post Diameter:
8"

Product Videos

Eterrra PDX-750 Breaker Style Post Driver for Skid Steer Loaders - Warehouse Walkthrough 06:45
  • Eterrra PDX-750 Breaker Style Post Driver for Skid Steer Loaders - Warehouse Walkthrough
    The next generation of Breaker Style Post Drivers, the PDX-750 from Eterra will take your Skid Steer Post Driving and Post Pounding to the next level. Build rugged, Excavator and Backhoe compatible, with available Tilt Functionality, two driver head options, and the ability to swap in a 5-foot concrete breaker tool, the PDX-750 sets the standard when it comes to serious and efficient post driving and fence installation. Watch our warehouse walkthrough where Rob will show you, in detail, the incredible features and benefits of the PDX-750. Learn more, view options, and purchase at Skid Steer Solutions: https://www.skidsteersolutions.com/pdx-750-breaker-style-skid-steer-post-driver-attachment-eterra/ Excavator owner? This system is modular - view the EX model here: https://www.skidsteersolutions.com/pdx-750-breaker-style-excavator-post-driver-attachment-eterra/

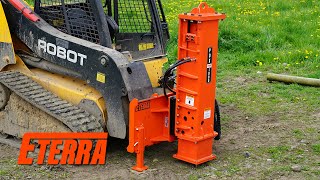

  • Eterra PDX-750 Breaker Style Post Driver - Product Overview and Demonstration
    Eterra is the originator of the American-Made, Breaker Style Post Driver. The PDX-750 is the latest edition of their industry-leading line of Post Driving Attachments. The PDX-750 features available Tilt Functionality, excavator and backhoe compatibility, two Driver Head options, and the ability to add a 5-Foot Concrete Breaker Tool with ease. Learn more about the evolution of Eterra's Post Driver Attachments, examine key features and benefits, and see the PDX-750 in action. Shop the Eterra PDX-750 Breaker Style Post Driver at Skid Steer Solutions: https://www.skidsteersolutions.com/pdx-750-breaker-style-skid-steer-post-driver-attachment-eterra/ Check out our full line of Skid Steer Post Driving Attachments: https://www.skidsteersolutions.com/skid-steer/skid-steer-attachments/post-fence-installation The PDX-750 is also compatible with Excavators and Backhoes! https://www.skidsteersolutions.com/pdx-750-breaker-style-excavator-post-driver-attachment-eterra/
  • The NEW Eterra® PDX-750 Post Driver for Skid Steer and Excavators
    The Eterra PDX-750 is a the next generation of Skid Steer Post Driver attachment tools. It's no longer being called the Breaker "Style" Post Driver, it's now fast becoming the most depended upon of post drivers for Skid Steer operators. It drives T-Posts to Railway Ties and has a bundle of features, now including TILT. This Video Demonstrates: - 2" Metal Scrap Pipe Posts (Just for show) - 4" and 6" pointed fence posts - 7" Metal pipe posts - T-Posts If you're interested in a PDX-750 of BPD-1250 Post Driver by eterra, visit our website www.eterra-usa.com, talk to your local dealer or call 360-203-7730. You can also email us at sales@eterraattachments.com. www.eterra-usa.com and www.skidsteersolutions.com We'd love to know your thoughts on this amazing new and improved post driver attachment in the comments below. We originated this concept in 2007 with the introduction of the PD-550 post driver - Here are some historical videos for your viewing: PD-550 on Vimeo in 2008 https://vimeo.com/2057156 PD-550 Post Driver in 2013 https://www.youtube.com/watch?v=rCzMTop8UB4 In 2016 we introduced the BPD-750 Post Driver: https://www.youtube.com/watch?v=PnGA7Xiodx4

Skid Steer Solutions, Inc. offers a 1-Year Limited NO-HASSLE Warranty on all attachment products and their accessories purchased from our website SkidSteerSolutions.com, please visit our warranty page for full details. Our warranty on parts and wear parts is dependent upon the manufacturer's warranty. Please visit our warranty page for more information. To learn about our returns policy, please visit our Shipping and Returns page for the full details.
